We cut flat gaskets for flange connections to a standard or the customer’s drawing. We select the material for the medium, temperature, pressure and connection geometry. For selected sheets, DVGW and TA-Luft approvals can be confirmed on request.
We supply flange gaskets to two principal standards: DIN EN 1514-1 for European DIN/EN flanges up to PN 63, and ASME B16.21 for non-metallic gaskets used with ASME/ANSI flanges. We cut them from sheets up to 1500 mm wide on KIMLA routers.
Dimensions: DN 10-1500 for DIN and NPS 1/2-60 for ASME. Standard thicknesses: 1.5 mm, 2 mm, 3 mm and 4 mm. We select the thickness according to the material, medium, temperature, pressure, flange geometry and bolt load. IBC form, with the gasket between the flanges.
Materials: Donit Tesnit BA-202 for oils and up to +180°C, Gambit AF as a general-purpose material, Grafilit for steam and up to +550°C under oxidising conditions, Doniflon PTFE for chemical applications, MICALIT with mica and an AISI 316L stainless steel insert up to +950°C, and NBR, EPDM and Viton rubber.
We offer flange gaskets in three main geometric forms:
The operating parameters of gasket sheets do not correspond directly to the flange PN rating. Gasket material and thickness are selected according to the medium, temperature, operating pressure, flange geometry, bolt load and required tightness.
Confirmed material parameters:
For high-pressure applications, the metal or semi-metallic gasket is selected individually according to the flange standard and class, medium, temperature, load and required tightness. The available designs are described on the page Spiral wound gaskets.
Selection by medium:
The material table on the page provides the full operating parameters for each sheet, including temperatures and pressures: Flat gaskets.

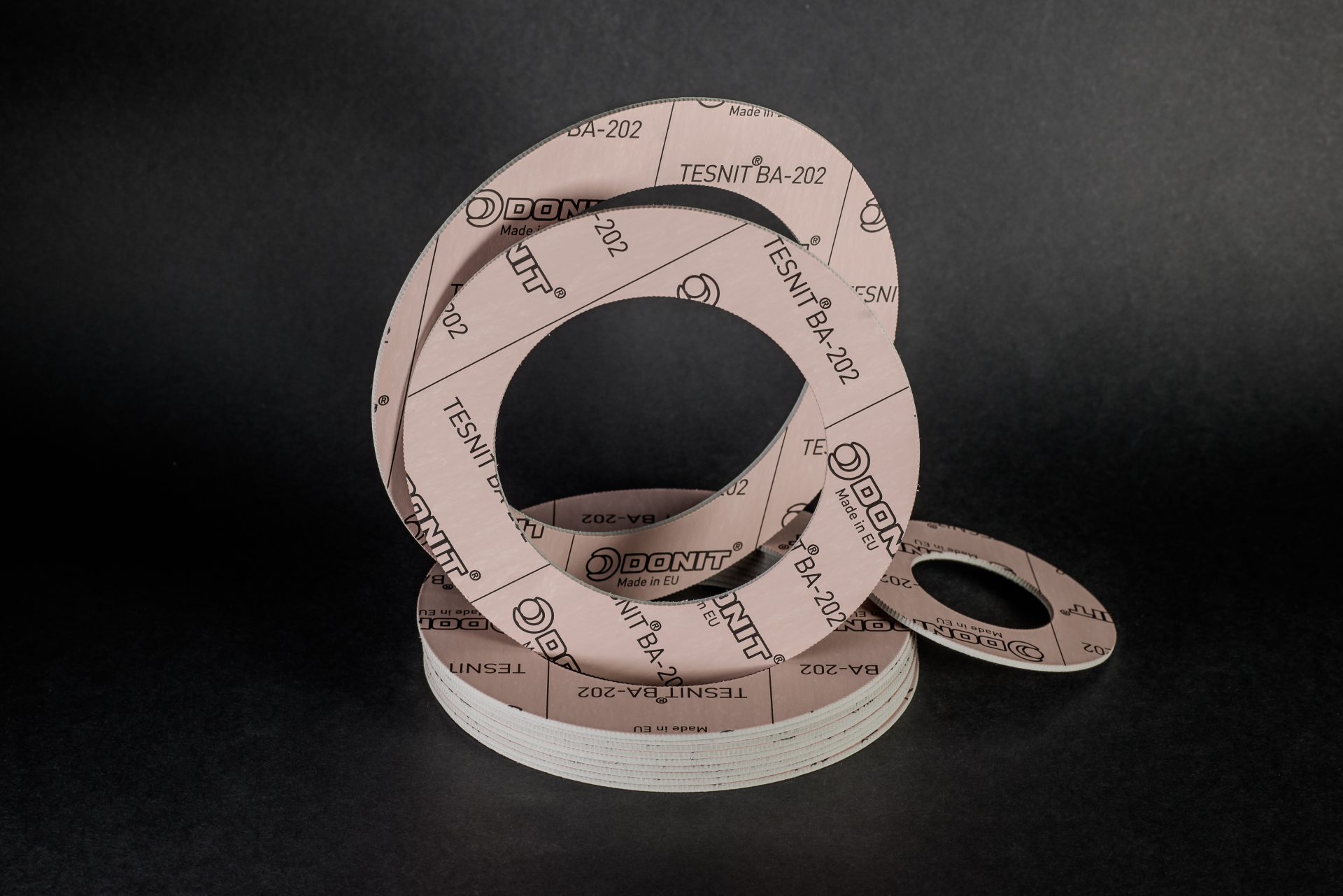

Donit BA-202 for fuels and installations subject to lower loads. Grafilit for steam and furnaces. Doniflon PTFE for chemical applications.

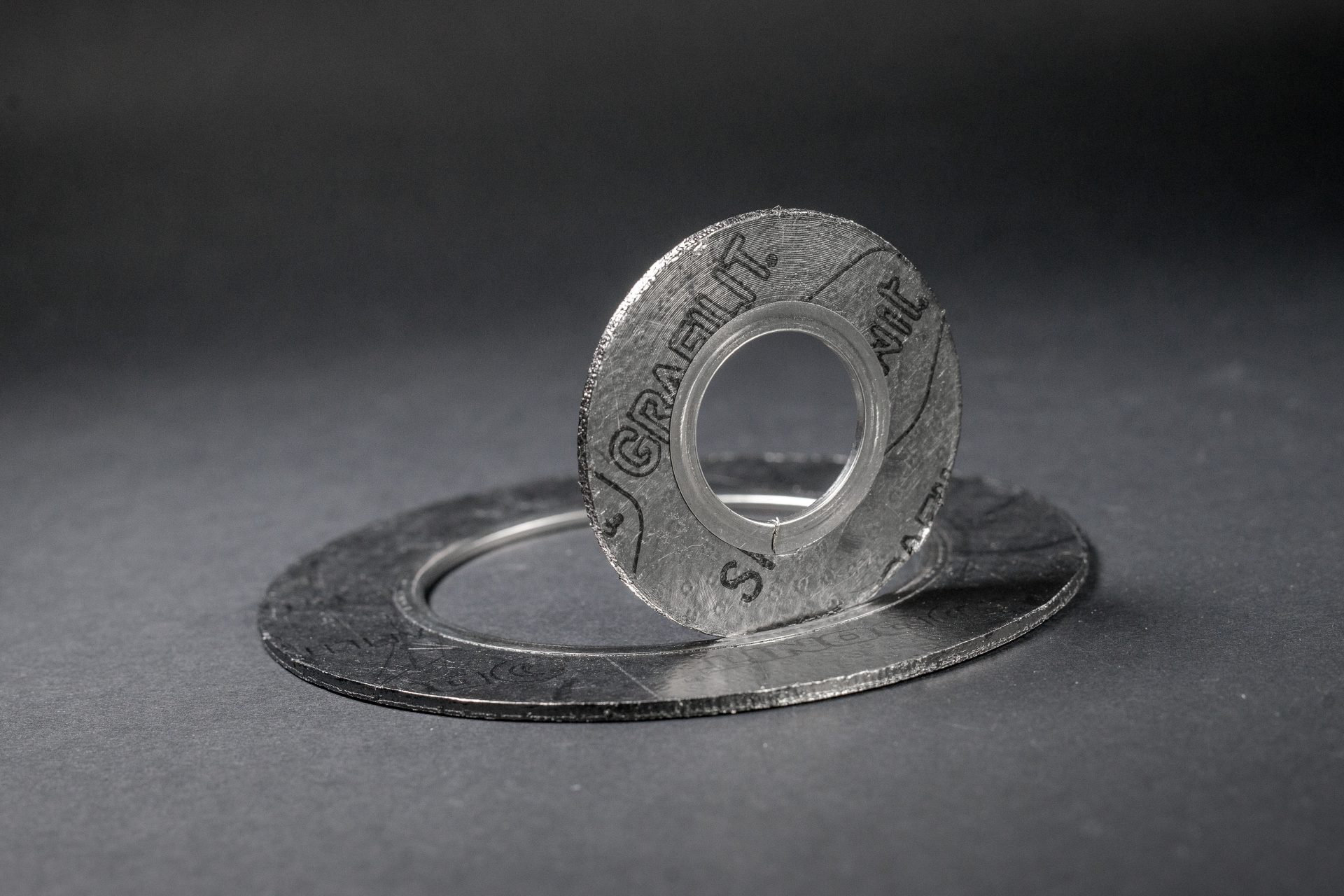

Grafilit SL for steam at 100 bar, and Grafilit SP up to +550°C under oxidising conditions at 200 bar. MICALIT for furnace and superheated-steam applications. We confirm the required approvals for the specific sheet when you enquire.
We select Donit BA-CF and Gambit AF family sheets for the medium and operating conditions. DVGW approval and drinking-water documentation are confirmed for the specific grade on request. EPDM rubber for water installations.
Physiologically inert Doniflon PTFE for production lines. Steam-sterilisable expanded PTFE (e-PTFE) for CIP/SIP. EPDM/NBR rubber as base materials.
We manufacture gaskets to the following standards:
We specialise in manufacturing flange gaskets:
Provide the DN, PN, material and quantity for a quotation. Non-standard dimensions require a drawing.
ANBI-TECH Sp. z o.o., Olewin 50A, 32-300 Olkusz. Telephone +48 32 788 70 10. Email: anbi@anbi-tech.pl.
The key data are: 1) flange type, DIN or ASME, 2) DN and PN, or Class, 3) chemical medium, 4) temperature and 5) pressure. With this information, we select the material and dimensions according to the selection guide.
DIN/EN flanges are European and are designated by DN and PN. ASME flanges are American, are often also described as ANSI, and are designated by NPS and Class (150/300/600/900/1500/2500). Different dimensions and bolt-hole patterns mean that the gaskets are not interchangeable.
We dispatch gaskets in typical DIN and ASME dimensions made from standard materials within 24 to 72 hours, provided the sheet is in stock. Non-standard dimensions and specialist materials require a longer lead time, which we confirm with the quotation because it depends on material availability and the current production workload. For urgent orders, we assess whether an earlier delivery is possible.
RTJ (Ring Type Joint) gaskets are custom-made metal rings. The R variant may have an oval or octagonal cross-section, while RX and BX variants are selected for the corresponding groove and flange class in accordance with ASME B16.20. More information: Spiral wound gaskets.
We manufacture gaskets to order. If an enquiry also includes a flange, bolts or nuts, the possible scope of supply must be confirmed individually. ASTM A193/A193M covers bolting materials for high-temperature or high-pressure service, while ASTM A194/A194M covers nuts for these applications. The selection of grades, including B7 and 2H, depends on the project requirements and operating conditions.
