Compare fibre, graphite, PTFE, rubber, spiral-wound and metal-clad materials. Select the dimension to the flange standard and confirm certificates for the specific grade.
| Installation data | What to provide | Why it affects selection |
|---|---|---|
| Process medium | Medium name, concentration and any contaminants | Materials differ in chemical resistance |
| Temperature | Minimum, continuous operating and short-term temperatures | Temperature changes the durability of the material and joint |
| Pressure | Operating pressure, surges and flange class | It affects gasket design and loading |
| Joint | Standard, DN and PN or NPS and class, dimensions and surface condition | It determines gasket geometry and the correct gasket dimension |
| Documentation | Required approvals, certificates and inspection document | An approval applies to a specific grade, not a whole material family |
One piece of information, such as temperature alone or PN class alone, is not enough for safe selection.
Gasket selection starts with 5 questions: 1) What medium (water, oil, fuel, acid, steam)? 2) What operating temperature? 3) What pressure? 4) What flange (DIN/ASME, DN, PN)? 5) Are industry certificates required (DVGW, TA-Luft, KTW)?
After defining the medium and temperature, we select a gasket material: non-metallic fibre, graphite, PTFE, rubber, spiral-wound or metal-clad. Parameters are selected for the specific grade and application.
After selecting the material, we choose gasket dimensions to the flange standard (DIN EN 1514-1 or ASME B16.21) and thickness from the catalogue thicknesses for the selected sheet grade, usually from 0.5 to 3 mm. For critical applications with elevated pressure and temperature, we use MS spiral-wound gaskets or RTJ rings.
Material selection by chemical medium:
Selection by temperature range:

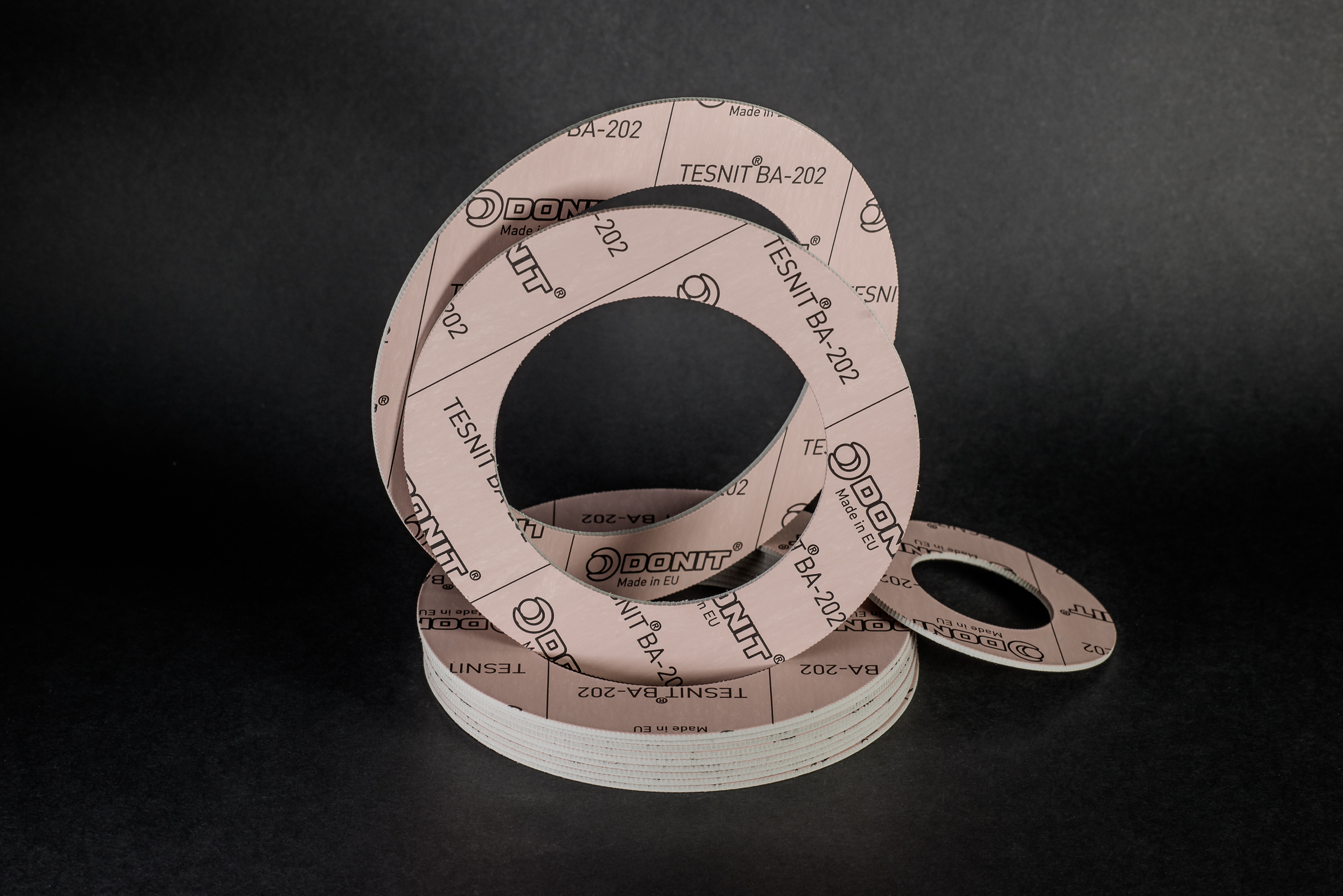

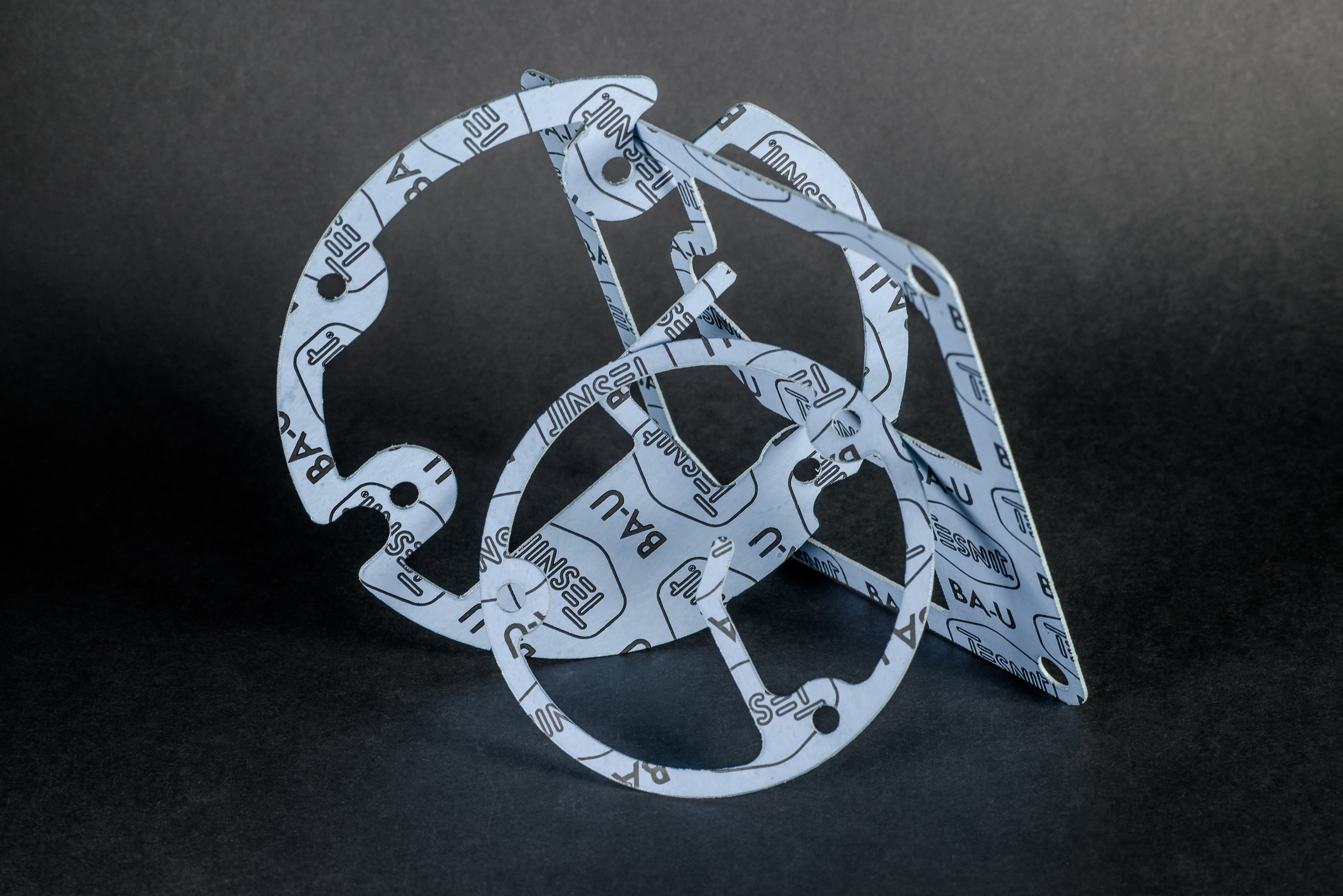

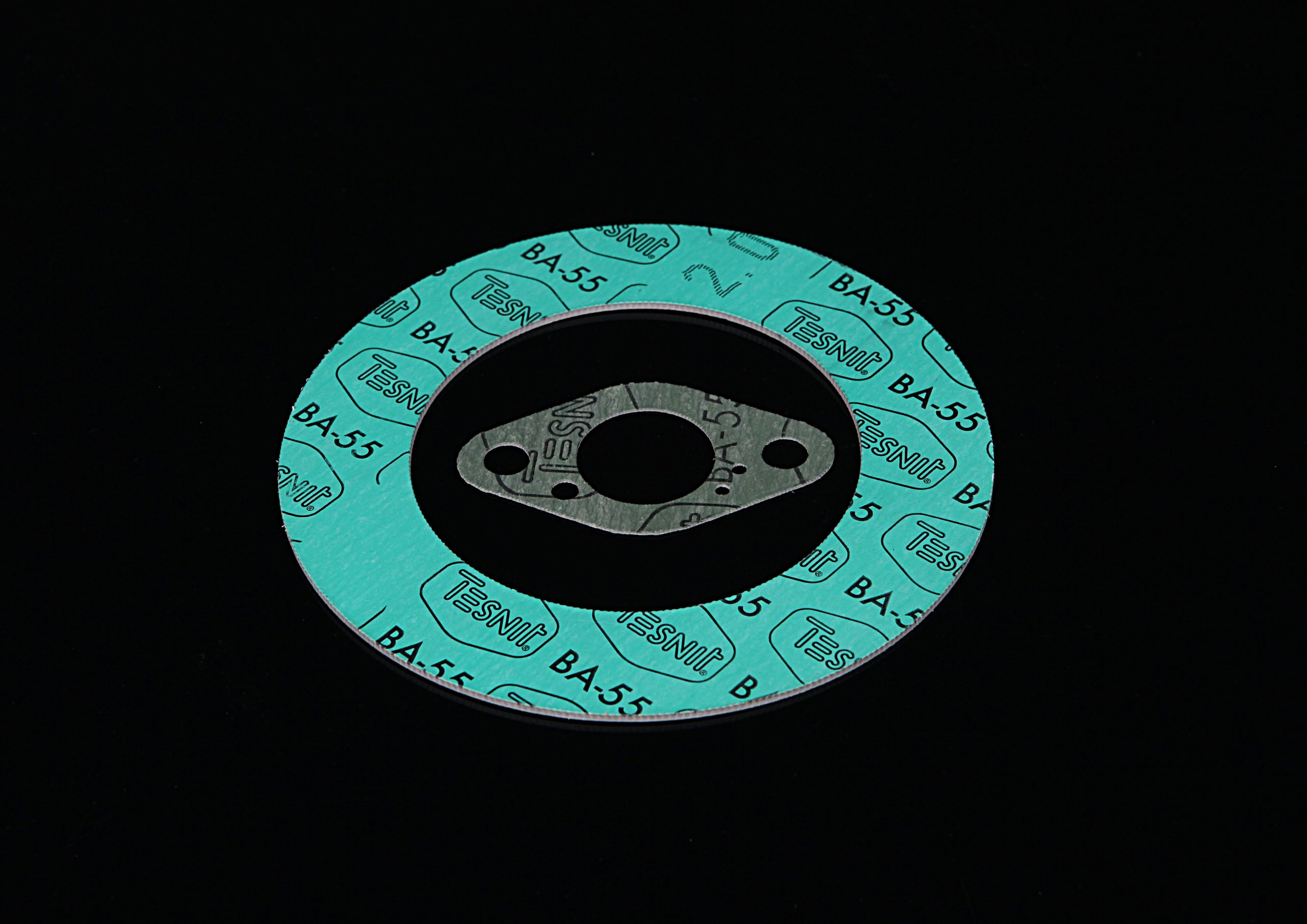

Fibres + elastomer. Parameters depend on the sheet grade, for example Gambit AF-300 up to 320°C and 10 bar, Gambit AF-1000 up to 420°C and 12 bar, Tesnit BA-50 up to 280°C and 80 bar, Tesnit BA-GL up to 440°C and 120 bar. Applications depend on grade; selected sheets are intended for water, gas, oils or fuels. DVGW or TA-Luft are available only for selected grades and must be confirmed before ordering.
Expanded graphite. Up to +550°C, pressure depending on grade: Grafilit SF up to 80 bar, SL up to 100 bar, SP up to 200 bar. Steam, oils and gases. Not resistant to strongly oxidising substances such as nitric acid and chromic acid. DVGW or TA-Luft are available for selected grades and must be confirmed before ordering.
Pure expanded PTFE. -240°C to +260°C. Selection for a PN class requires checking the specific material, flange, temperature, medium and load. Chemistry: acids, alkalis and solvents. The exceptions are liquid alkali metals and gaseous fluorine. The Doniflon 900E datasheet confirms physiological safety and purity of flowing products. For food or pharmaceutical applications, confirm the current documentation for the selected grade.
Mica with an AISI 316L stainless-steel insert and spiral-wound metal-clad gaskets. MICALIT up to +950°C and a maximum pressure of 40 bar; MS spiral-wound gaskets with graphite filler up to +550°C. Furnaces, superheated steam and high temperatures.
Gasket dimensions by standard:
Industry certificates for gaskets are available for selected sheets at the customer’s request:
A full list of certificates by sheet is available on request. Ask for a certificate and its price no later than when placing the order, and we confirm its issue separately.
Check documents and certificates
Send the parameters: medium, temperature, pressure and flange type. Based on this information, we can help select the material and dimension.
ANBI-TECH Sp. z o.o., Olewin 50A, 32-300 Olkusz. Telephone +48 32 788 70 10. Email: anbi@anbi-tech.pl.
The choice depends on medium, temperature, pressure, flange type and required approvals. Do not assign one temperature or one pressure to an entire sheet family. For BA-CF, the pressure range is up to 12 MPa; check all other parameters in the datasheet of the specific grade. Graphite is selected using the same operating data.
Not always. A spiral-wound gasket is selected for joints operating at elevated temperature and pressure, especially when conditions change cyclically. A flat gasket may be correct under stable conditions. Selection depends on the specific installation parameters, flange material and required approvals.
PN 40 class alone does not determine one correct thickness. The specific material grade, flange dimensions and surface condition, and operating conditions must be considered. Choose thickness from the catalogue values for the selected sheet grade and check it against the correct flange standard. Without this information, one value should not be specified.
Suitability for oxygen cannot be confirmed from the PTFE or Donit family name alone. For the specific material and operating conditions, check an oxygen approval, for example BAM (Oxygen), and the manufacturer’s datasheet. Each such application must be verified individually before selection.
TA-Luft concerns limiting fugitive emissions from installations. When selecting a gasket, the material-family name is not enough. Confirm that the specific grade has the required test or approval for the installation conditions. State the requirement in the quotation enquiry.
