Our range includes spiral wound, high-temperature, metal jacketed and kammprofile gaskets, RTJ rings, corrugated metal gaskets, metal-edged gaskets and heat exchanger gaskets. We select the type, material and filler for the medium, temperature, pressure and joint design.

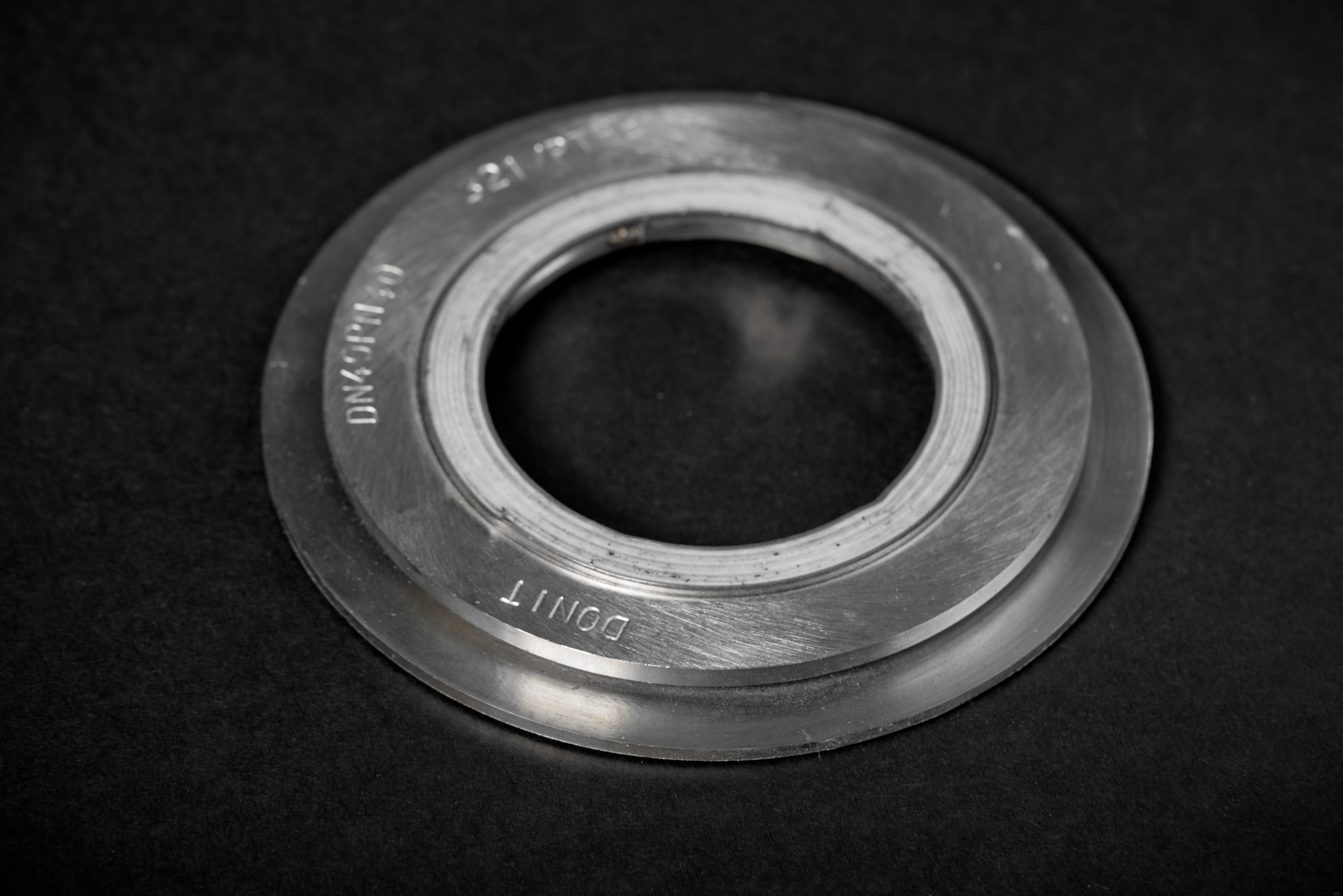

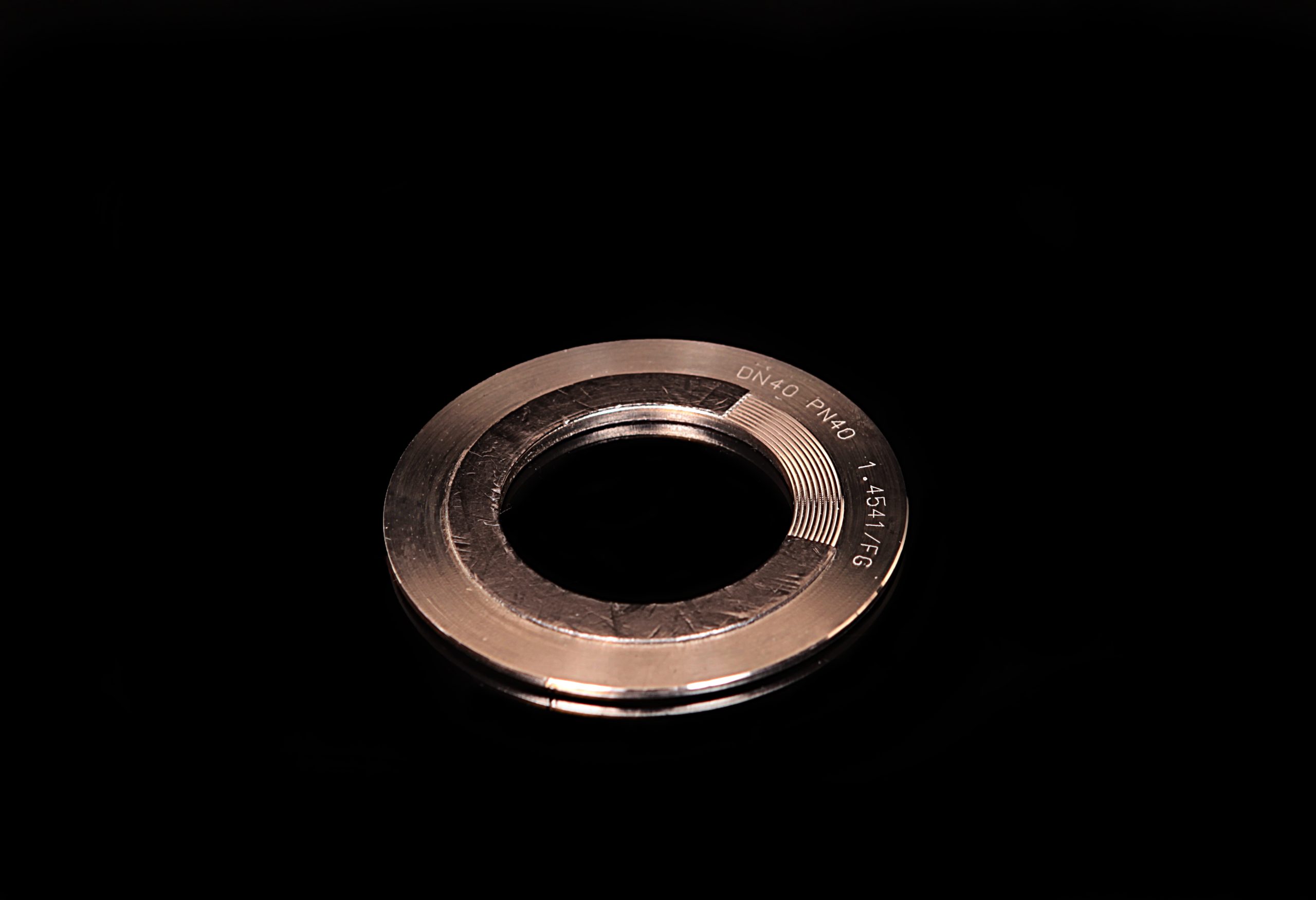

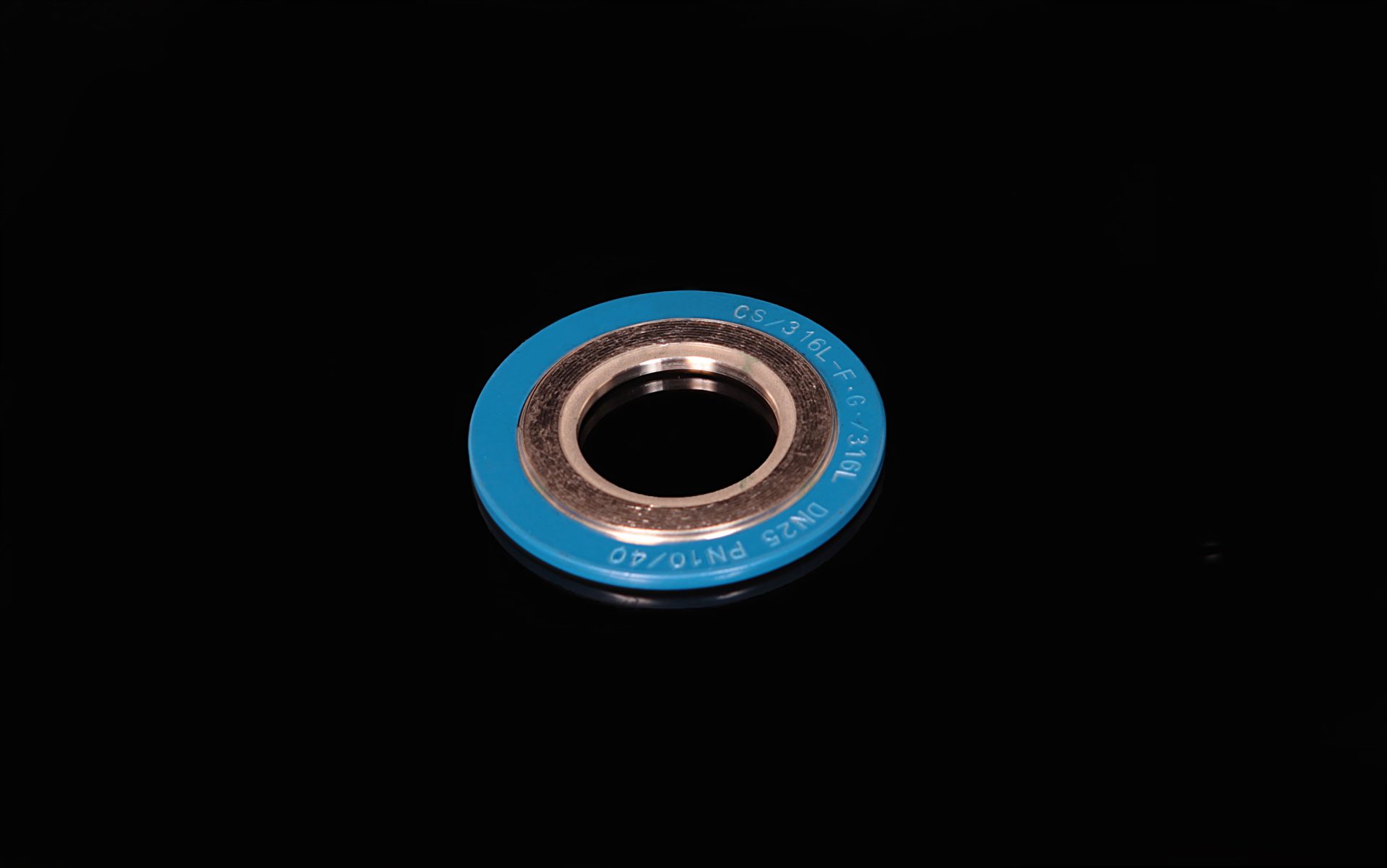

Spiral wound gaskets consist of a V-shaped metal strip wound spirally with filler between the turns. The design provides resilience and maintains the seal under pressure fluctuations.
Design types: MS10 (without a guide ring or inner ring), MS12 (with an inner ring), MS14 (with an outer ring), MS16 (with inner and outer rings), and MS10T (without a guide ring or inner ring, with a PTFE sealing zone, up to +250°C).
Spiral strip materials: SS304 (standard), SS316L (chemical applications and chloride media), Inconel 600 (high temperatures, made to order). Fillers: graphite (up to +550°C, the standard filler for steam), PTFE (chemical applications, acids/alkalis) and mica (filler for the highest temperatures, limited by the strip material).
Standard designs:
Filler material selection:
Maximum operating pressure for MS10-MS16 types: 400 bar.
Spiral strip material selection:
Heat exchangers, process equipment and reactors. We confirm gasket selection at the enquiry stage on the basis of the system parameters. We confirm required approvals, including TA-Luft (VDI 2440), with the manufacturer at the enquiry stage.
Boilers, steam systems and heat exchangers. We confirm gasket selection at the enquiry stage on the basis of the system parameters.
Reactors and systems for dilute acids, alkalis and solvents. We confirm gasket selection at the enquiry stage on the basis of the system parameters.
Seals for flange connections, pumps and valves. We confirm gasket selection at the enquiry stage on the basis of the system parameters.
In food processing, spiral wound gaskets are used in flange connections and on manway covers, pressure vessels, compressors and valves. We select the gasket according to the system parameters: medium, temperature, pressure and joint design.
We supply spiral wound gaskets from stock or to order:
Specify the gasket type, medium, operating temperature and pressure, connection standard, dimensions, material and quantity. For a non-standard design, attach a dimensioned drawing or sketch.
ANBI-TECH Sp. z o.o., Olewin 50A, 32-300 Olkusz. Telephone +48 32 788 70 10. E-mail: anbi@anbi-tech.pl.
A heat exchanger seal is selected for the equipment design and operating parameters. Possible designs include spiral wound, metal jacketed and special gaskets with partition bars. In your enquiry, specify the medium, operating and maximum temperatures, operating pressure, flange type and standard, dimensions, flange materials and any additional technical requirements.
MS10 has neither an inner nor an outer ring. MS12 has an inner ring, MS14 an outer ring, and MS16 both rings.
No. MS16 is a spiral wound gasket design with inner and outer rings. Spiral wound gaskets and RTJ ring gaskets are different designs.
We publish references we have received and reviews from the ANBI-TECH business profile on Google Maps. The English versions are faithful translations of the Polish originals.
I can wholeheartedly recommend Anbi-Tech as a reliable and professional partner in machining and in manufacturing parts for the pharmaceutical industry. This is the third company where I have had the pleasure of working with Anbi-Tech, and the cooperation has been of the highest standard every time.
The pharmaceutical industry is exceptionally demanding: precision, on-time delivery, material quality and a full understanding of the customer’s needs all matter. Anbi-Tech has repeatedly proved that it is very well suited to this environment. The company has manufactured change parts, spare parts, filling needles, conveyor screws, components for dispensing powders and liquids, and many other production components for us.
The quality of the parts deserves particular recognition, whether they are made from 316L and 304 stainless steel or plastics such as POM, polyurethane and polycarbonate. The components are manufactured to a very high standard, with close attention to accuracy and detail, which is crucial in our industry.
Anbi-Tech has literally ‘saved our skin’ on many occasions in emergencies where time, a rapid response and a flexible approach to the customer mattered. A major strength of the company is its modern machinery, which enables it to complete even highly demanding projects while maintaining the highest standard of workmanship.
The people are equally important: the company’s staff always show complete commitment and a willingness to cooperate and provide technical support. Their extensive experience, professionalism and collaborative approach to customers are clear to see.
In pharmaceuticals, the ‘paperwork’, meaning certificates, is also important. The certificates have never been questioned during customer or regulatory audits, for example by GIF.
I strongly recommend working with Anbi-Tech to any company looking for a proven, reliable and quality-focused technical partner.
Dariusz Stachowicz, Senior Maintenance Manager, Polfa Warszawa S.A.
We had a very good experience working with Anbi-Tech on a new production line project for a bottling plant. Using a bottle sample and components from the old line, its engineer prepared the design and documentation for new change parts in SolidWorks. Anbi-Tech then manufactured timing screws, star wheels, drive components, bottle orienters, bottle turners and feeding components, among other items.
A major advantage is the end-to-end approach, from analysis and design through to the manufacture of finished components. Their considerable technical experience, precision and ability to solve unusual problems are clear. I recommend them.
Bartłomiej Ć, Specialist, ORLEN
We work with Anbi-Tech to manufacture parts and technical components for our projects. We value them above all for their workmanship, on-time delivery and excellent communication. When requirements are unusual, they can advise us and find a solution instead of simply manufacturing a part from a drawing. A reliable partner that I am happy to recommend.
Marek P., Production Manager, Triccor
A reliable company with extensive experience! They manufacture parts from steel, aluminium and specialist plastics such as POM and PTFE. Every service, whether turning, milling or CNC cutting, is carried out perfectly and with attention to the smallest detail. Excellent communication, professional advice and consistently on-time delivery. I wholeheartedly recommend them to anyone who needs reliable components.
Damian Lab
For a quotation, send a PDF or DXF drawing or a STEP model with dimensions. State the material, the number of pieces and the quality requirements. A photograph of the part alone, without dimensions, does not allow a reliable quotation to be prepared.
If the project combines several operations, we will agree the scope of machining, inspection, assembly and processes carried out by partners.
