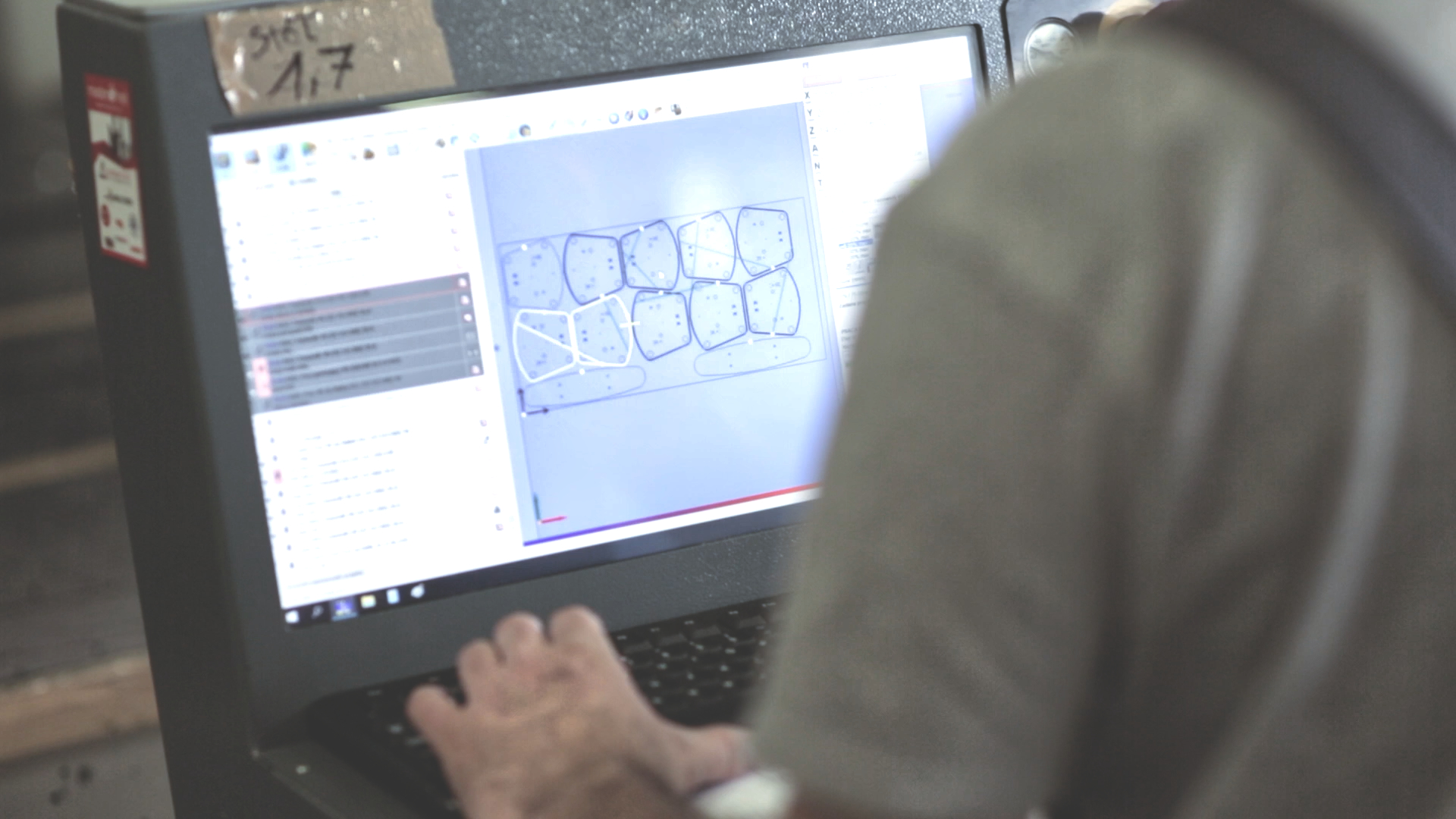

We select SBR, NBR, EPDM, CR or FKM sheets for the medium, temperature and operating conditions. We cut parts from DXF or STEP files on a KIMLA cutting plotter.
We offer rubber sheets in 5 basic types: SBR (styrene-butadiene rubber – general purpose), NBR (nitrile – oil-resistant), EPDM (ethylene propylene diene rubber – acid-resistant and resistant to ageing and ozone), CR (chloroprene – versatile and flame-retardant), and Viton FKM (high chemical and temperature resistance).
Available formats: standard roll width 1200 mm, standard roll length 10 m; thicker sheets come in shorter rolls because roll weight does not exceed 60 kg. Thicknesses from 1 mm; we confirm the available range for the selected sheet type. Standard hardness 65 ±5 Shore A. Surface: smooth or ribbed. Construction: without reinforcement or with fabric reinforcement.
We select industry approvals and certificates for the specific product and application. For contact with drinking water, we select a suitable EPDM version; before quotation, we confirm availability of the required documents from the current data sheet for the specific product.
We offer 5 basic types of rubber sheets:

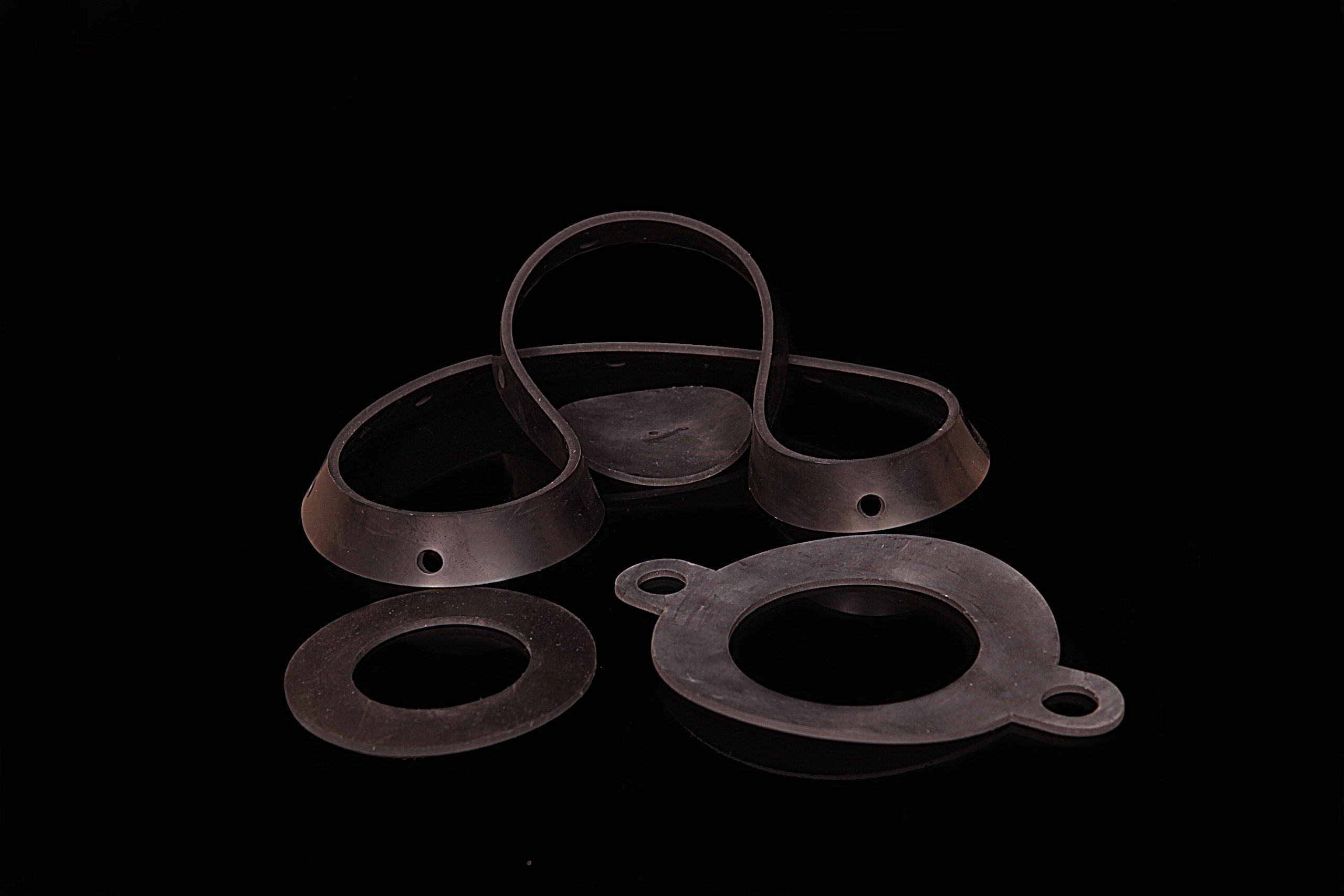

We make washers and flat gaskets from rubber selected for static, non-stretched service.
Selection of a rubber sheet by medium and temperature:
Gaskets and washers cut from rubber sheets are used in water installations, process engineering, and the petrochemical, automotive, food and processing industries.
Rubber linings for tanks containing acids, alkalis and fuels. NBR, EPDM and CR, smooth or with fabric reinforcement. Thickness selected for the medium and operating conditions.
Rubber gaskets to DIN EN 1514 and ASME B16.21 – cut on a KIMLA cutting plotter. Materials: NBR, EPDM and Viton. We also make rubber-metal gaskets tailored to the application.
We cut damping pads for CNC machines and compressors from SBR sheets. Thickness selected for the load and operating conditions.
Our rubber product range also includes belts. Tensile strength plus abrasion resistance. We select rubber for parts exposed to abrasion.
Types of rubber used in our rubber sheets:
We specialise in cutting parts from rubber sheets:
Specify the rubber type (NBR/EPDM/SBR/CR/Viton), Shore A hardness, thickness and quantity – we will prepare a quotation.
ANBI-TECH Sp. z o.o., Olewin 50A, 32-300 Olkusz. Telephone +48 32 788 70 10. Email: anbi@anbi-tech.pl.
The range includes SBR, NBR, EPDM, CR and FKM sheets.
A standard roll is 1200 mm wide and 10 m long. Roll length is limited so that the roll weight does not exceed 60 kg.
The range includes sheets with fabric reinforcement and without reinforcement.
Rubber sheets are intended for making washers and gaskets used statically in a non-stretched condition.
The standard hardness of SBR, NBR, EPDM and CR sheets is 65 ±5 Shore A.
We publish references we have received and reviews from the ANBI-TECH business profile on Google Maps. The English versions are faithful translations of the Polish originals.
I can wholeheartedly recommend Anbi-Tech as a reliable and professional partner in machining and in manufacturing parts for the pharmaceutical industry. This is the third company where I have had the pleasure of working with Anbi-Tech, and the cooperation has been of the highest standard every time.
The pharmaceutical industry is exceptionally demanding: precision, on-time delivery, material quality and a full understanding of the customer’s needs all matter. Anbi-Tech has repeatedly proved that it is very well suited to this environment. The company has manufactured change parts, spare parts, filling needles, conveyor screws, components for dispensing powders and liquids, and many other production components for us.
The quality of the parts deserves particular recognition, whether they are made from 316L and 304 stainless steel or plastics such as POM, polyurethane and polycarbonate. The components are manufactured to a very high standard, with close attention to accuracy and detail, which is crucial in our industry.
Anbi-Tech has literally ‘saved our skin’ on many occasions in emergencies where time, a rapid response and a flexible approach to the customer mattered. A major strength of the company is its modern machinery, which enables it to complete even highly demanding projects while maintaining the highest standard of workmanship.
The people are equally important: the company’s staff always show complete commitment and a willingness to cooperate and provide technical support. Their extensive experience, professionalism and collaborative approach to customers are clear to see.
In pharmaceuticals, the ‘paperwork’, meaning certificates, is also important. The certificates have never been questioned during customer or regulatory audits, for example by GIF.
I strongly recommend working with Anbi-Tech to any company looking for a proven, reliable and quality-focused technical partner.
Dariusz Stachowicz, Senior Maintenance Manager, Polfa Warszawa S.A.
We had a very good experience working with Anbi-Tech on a new production line project for a bottling plant. Using a bottle sample and components from the old line, its engineer prepared the design and documentation for new change parts in SolidWorks. Anbi-Tech then manufactured timing screws, star wheels, drive components, bottle orienters, bottle turners and feeding components, among other items.
A major advantage is the end-to-end approach, from analysis and design through to the manufacture of finished components. Their considerable technical experience, precision and ability to solve unusual problems are clear. I recommend them.
Bartłomiej Ć, Specialist, ORLEN
We work with Anbi-Tech to manufacture parts and technical components for our projects. We value them above all for their workmanship, on-time delivery and excellent communication. When requirements are unusual, they can advise us and find a solution instead of simply manufacturing a part from a drawing. A reliable partner that I am happy to recommend.
Marek P., Production Manager, Triccor
A reliable company with extensive experience! They manufacture parts from steel, aluminium and specialist plastics such as POM and PTFE. Every service, whether turning, milling or CNC cutting, is carried out perfectly and with attention to the smallest detail. Excellent communication, professional advice and consistently on-time delivery. I wholeheartedly recommend them to anyone who needs reliable components.
Damian Lab
For a quotation, send a PDF or DXF drawing or a STEP model with dimensions. State the material, the number of pieces and the quality requirements. A photograph of the part alone, without dimensions, does not allow a reliable quotation to be prepared.
If the project combines several operations, we will agree the scope of machining, inspection, assembly and processes carried out by partners.
